規格：見技術參數

Specification: Refer to technical parameters. .

用途：適用于工模具鋼、高速鋼、不銹鋼等材料的淬火處理；不銹鋼、鈦及鈦合金等材料的固溶處理；多種磁性材料的退火處理及回火處理；也可用于真空釬焊及真空燒結等

Application: It is suitable for quenching treatment of die steel, high speed steel, stainless steel and other materials; solid solution treatment of stainless steel, titanium and titanium alloy; annealing treatment and tempering treatment of various magnetic materials; can also be used for vacuum brazing and vacuum sintering, etc.。

特點：characteristic：

1.采用一體擠壓圓形換熱器， 冷卻速度提高100%，穩定性高

The cooling rate is increased by 100%and the stability is high.

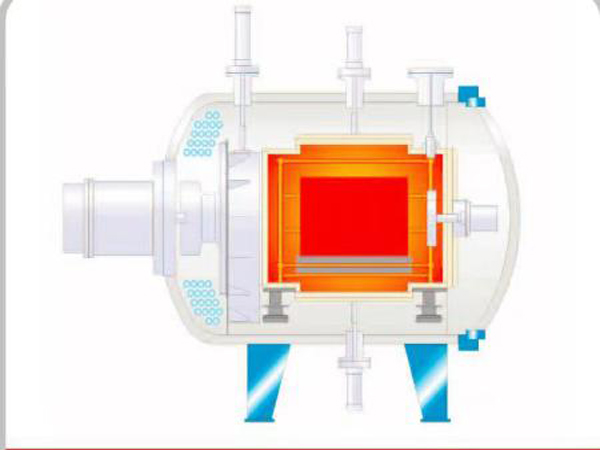

2.采用上下交替氣冷方式，流量均勻，工件變形量小

The air cooling mode is adopted alternately up and down, the flow rate is uniform and the deformation of workpiece is small.

3.加熱元件沿加熱室四周均勻布置，溫度均勻性高，熱攪拌可用于真空回火

The heating element is evenly arranged around the heating chamber with high temperature uniformity. Hot stirring can be used for vacuum tempering.

4.采用復合硬氈/金屬屏為加熱室隔熱層，較風管結構的節能30%

The composite hard felt / metal screen is used as the heat insulation layer of the heating chamber, which saves 30% energy compared with the air duct structure.

5.工件變形小，生產效率高，使用成本低 40%

Workpiece deformation is small, production efficiency is high, the cost is lowered by 40%.

6.編程工藝靈活輸入，機械動作穩定可靠，故障自動報警/顯示

Flexible input of programming process, stable and reliable mechanical action, automatic alarm / display of fault

7.氣淬風機變頻驅動，對流加熱功能可選、九點測溫可選、分級及等溫淬火

Frequency conversion drive of gas quenching fan, optional convective heating function, optional nine point temperature measurement, classification and austempering、　

8. 全智能化工業計算機控制系統并有一套手動操作系統

Fully intelligent chemical industry computer control system and a manual operating system。

9. 操作簡潔、編程工藝靈活輸入、機械動作穩定可靠

Simple operation, flexible input of programming process, stable and reliable mechanical action

10.手動/半自動/自動 故障自動報警/顯示

Manual / semi-automatic / automatic fault automatic alarm / display

配置選擇/Configure select:

產品 規格/ Specifications：

注：特殊規格要求可根據客戶要求定制

Note: Special specification requirements can be customized according to customer requirements

 以下參數可根據工藝要求調整，不作為驗收依據，具體以技術方案和協議為準

The following parameters may be adjusted according to the process requirements and shall not be used as the basis for acceptance, depending on the technical scheme and agreement.
